G Series VFD Industrial Fan – Reliable Low Noise Axial Flow for Motor Cooling
G Series VFD Industrial Fan – Reliable Low Noise Axial Flow for Motor Cooling - Image 2
G Series VFD Industrial Fan – Reliable Low Noise Axial Flow for Motor Cooling - Image 3

G Series VFD Industrial Fan – Reliable Low Noise Axial Flow for Motor Cooling

GF series cross-flow fans designed for dry-type transformer cooling, boosting output capacity by 40-50% and extending service life.

  • Series: GF
  • Type: Cross-Flow Cooling Fan
  • Applications: Dry-type transformers, distribution cabinets, electrical equipment
  • Configurations: Single/three-phase, top/side-blow, A/B motor positions
  • Operating Temperature: -40℃ ~ +75℃
  • Benefits: 40-50% capacity boost, extended equipment life
SEND INQUIRY

Product Details

The G Series VFD axial flow fan is ideal for industrial motor cooling and ventilation. The fan’s external rotor motor and securely mounted blades offer low noise, high airflow, and structural stability. Easy to install and maintain, it ensures reliable operation even in demanding industrial environments.

Key Specifications:

  • Rated Voltage: Single-phase 110V/220V/380V, Three-phase 110V–1140V
  • Rated Frequency: 50/60Hz
  • IP Protection: IP54 or IP55
  • Continuous duty operation (S1)

Benefits:

  • Energy-efficient and quiet operation
  • Durable, compact industrial design
  • Easy inspection and maintenance
  • Ideal for industrial motors and ventilation systems

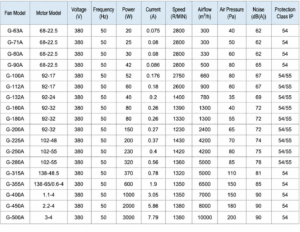

Parameter

Curve

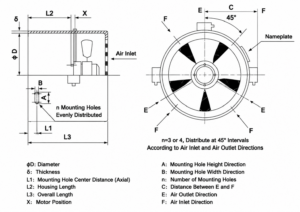

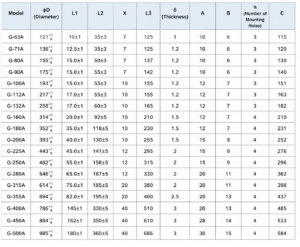

Dimension (mm)
