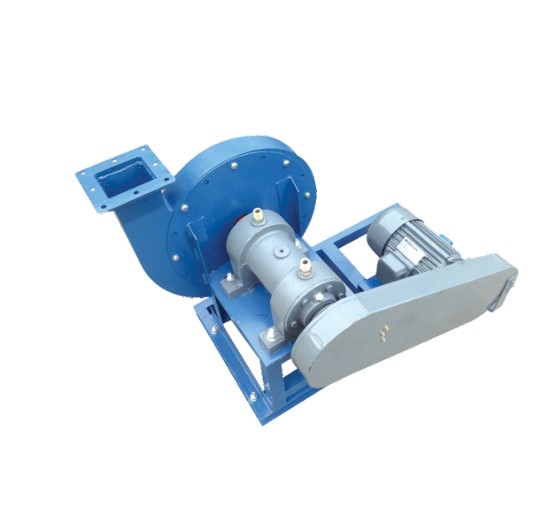

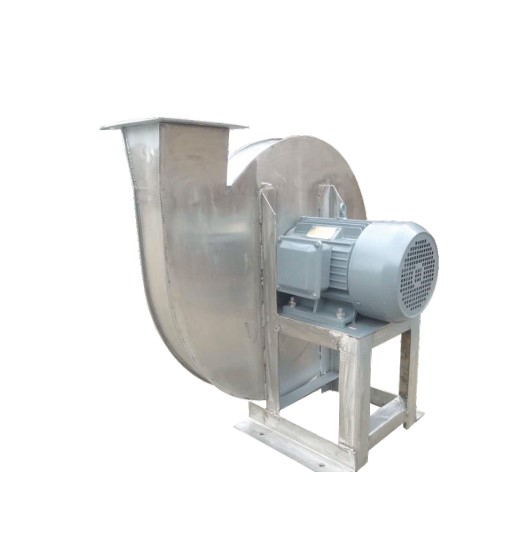

9-19 Series Centrifugal Fan – High-Pressure, Reliable Material Conveying

The 9-19 high-pressure centrifugal fan is suitable for conveying air and non-corrosive, non-sticky gases in industrial settings. Designed for material temperatures up to 80°C and dust concentration not exceeding 150 mg/m³, it is ideal for casting, glass, ceramics, electrical, battery, grain, feed, flour, and plastic industries.

Fan Features:

• Single inlet design, multiple models from 4 to 16 sizes
• Right-hand and left-hand rotation options
• Outlet angles available at 0°, 45°, 90°, 135°, 180°, and 225°
• Transmission options: Type A (4–6.3), Type D (7.1–16)
• Custom designs available to meet special requirements

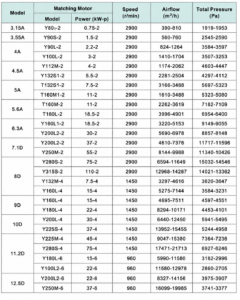

Parameter
